Monday, February 16, 2015

Golden Spike - #2


Continuing the Journey

The six cars that are required for the Rolling Stock (Motive Power & Cars) section of the Golden Spike Award are finally finished. In this post, I’ll review the cars that I will be showing to the AP (Achievement Program) Coordinator for evaluation.

Car #1 – Ralston Purina Reefer Car

As seen in the last post this car has been updated with new grab irons, ladders, stirrup steps, roof walk, body mounted couplers, new trucks, metal wheels and weathering.

BEFORE

DSC_0099_1 (2)

IN-PROGRESS

DSC_0023_1

AFTER

DSC_0038_1

Car #2 – Milwaukee Road TOFC Car

The car began life as a standard Blue Box Athearn 50’ flatcar. Additions to this included new metal wheels, couplers, side guard rails, collapsible trailer hitch, bridge plates, Milwaukee Road 40’ trailer and weathering.

BEFORE

ATH50FlatCar

AFTER

DSC_0051_1

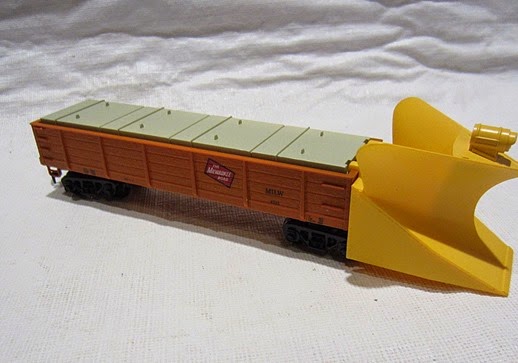

Car #3 – Milwaukee Road Snow Plow

This car started out as an International Hobby Corporation Snow Plow. I changed the the horn hook talgo trucks with regular trucks with metal wheels and body mounted Kadee couplers. In addition to the weathering, I added an LED to the headlight controlled by a switch and battery hidden under the concrete weights.

BEFORE

MilwSnowPlow

AFTER

DSC_0064_1

Car #4 – Milwaukee Road Stock Car

I have written about this car in a previous post. Not much was done to this car except the addition of metal wheels and heavy weathering. The previous post can be viewed by clicking this link: http://northmontanaline.blogspot.com/2014/08/layout-update-29.html

BEFORE

4704

AFTER

DSC_0154_1

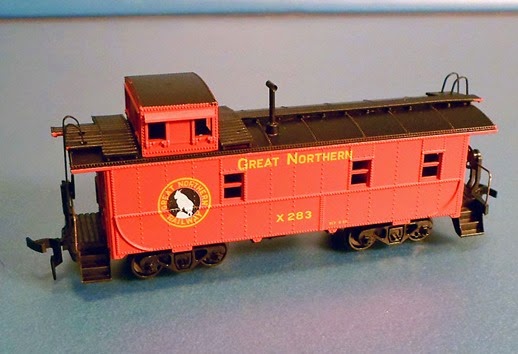

Car #5 – Great Northern Caboose

This caboose was a project started many years ago when the only decent looking inexpensive Great Northern caboose came from Athearn. Your choices were either brass or craftsman kits from companies like Silver Streak or Northeastern. My abilities at that time did not justify either kit and my wallet could not justify brass. The Blue Box kit seemed like the best alternative at the time. I changed things on the caboose to try and match Great Northern prototypes as best I could. The list includes sanding the roof to remove the rivets represent the tar paper roofs the GN used. The running boards were replaced as they represent the Santa Fe design that the original model takes after. New ladders were fashion from stock material to emulate the standard GN practice. Molded on grab irons were removed and replaced by wire grabs including new roof grabs made from lift rings and wire. The brake stands were replaced with a more appropriate style and end railings were replaced with GN style gates with logos and stripes. Additional reflective square decals were added along with lanterns for the rear end. New couplers and metal wheels were changed out. Window glass was added to the interior. Finally came time for weathering to give the caboose its proper well loved look.

BEFORE

2001ATHCaboose

AFTER

DSC_0060_1

Car #6 – Milwaukee Road Log Car

This car began as an Athearn Blue Box 40’ flat car. Extensive modification has taken place to the body of the car. The floor was chopped out and replaced with shorter end pieces. a new cover over the center sill placed as well as angle stringers finished out the flooring. Piping for the brake rigging was added to the molded on brake pieces in the under frame. While not completely correct it does get the idea across. Additional steel weights were cut to size and glued into the center sill spaces. The stake pockets on the side of the car were removed and filled in with putty. The molded on grab irons were removed and new wire grabs were added. The log bunks are from Details West. Painting was done using a rattle can of Krylon red primer. Microscale decals for a box car were the closest I could find that match the prototype. The usual metal wheels, Kadee couplers and weathering completed the model. The simulated logs are branches from trees in my yard.

BEFORE

ATH40FlatCar

PROTOTYPE

MilwLog

AFTER

DSC_0098_1

DSC_0107_1

Sunday, February 1, 2015

Golden Spike - #1


A New Year’s Resolution (Challenge)

GoldSpike_2

I am not one for making New Year’s resolutions. I’ve broken more than I’ve kept. This year will hopefully be different. No more losing weight, drinking less, exercising more or any other of the usual resolutions that hear about this time of year. This year is about a challenge that I will make to myself. To be a better modeler!  Now that sounds like something that I should be able to accomplish. The other types of resolutions can take a great deal of time and commitment to complete and that sounds like something that is more work than fun. I have to work to live, but I don’t have to live to work.
So what is my challenge for 2015? To begin the journey on the path for the Achievement Program as outlined by the NMRA. Will I ever become a Master Model Railroader? Who knows? Frankly, who cares? The idea is to challenge myself to become a better artisan at my craft. The title that goes with the ultimate goal does not mean that much to me. It is the journey to get there that means more. After reviewing the guidelines for the initial step for the Golden Spike Award, I spent some time reviewing my layout and rolling stock. So what are the qualifications for achieving the Golden Spike?

  • Rolling Stock (Motive Power & Cars):
    • Display six units of rolling stock either scratchbuilt, craftsman kits or detailed commercial kits.
  • Model Railroad Setting (Structures & Scenery):
    • Construct a minimum of eight square feet of layout including scenery.
    • Construct five structures either scratchbuilt, craftsman kits or detailed commercial kits.  If a module has less than five structures, additional structures separate from the scene may be presented.
  • Engineering (Civil & Electrical):
    • Three types of trackage required (e.g. turnout, crossing, crossover, etc.).  All must be properly ballasted and installed on proper roadbed.  Commercial trackage may be used.
    • All installed trackage must be properly wired so that two trains can be operated simultaneously (e.g. double track main, single track main with sidings, and block or command control).
    • Provide one additional electrical feature such as power operated turnouts, signaling, turnout indication, lighted buildings, etc.

For this post, I’ll talk about the first one; Rolling Stock (Motive Power & Cars). After reviewing all of my rolling stock, I came up with five pieces that easily fit into this category with minimal work. The rolling stock I chose, do not have to be in a contest or reach a certain score to be used for the Golden Spike. They just have to show that I did more than open the box and place it on the track. Things such as adding knuckle couplers and making sure they are properly adjusted, adding metal wheels, new paint and/or decals, weathering or any other small changes that you make to the model. Things we do all the time when preparing a model to be added to the layout or for display.

As for the sixth one, I decided that it should be something that would challenge me. At the November 2014 meeting I won a raffle for a Tyco Ralston Purina reefer car. Some would say, “Big deal! It’s a cheap toy car that comes with toy train sets.” I looked at it and said to myself, “How can I take this ‘Toy’ and make it into model to be proud of?” This is where the challenge for the New Year begins. My plan is to maintain the “essence” of the car while adding body mounted Kadee couplers, new trucks with metal wheels, details and weathering. Something I hope I will be proud of and not hide in box under the layout.

In future posts I will talk more about this “journey” towards the Golden Spike Award and hopefully inspire some of you to challenge yourself in 2015.

DSC_0099_1

DSC_0107_1DSC_0108_1

DSC_0105_1DSC_0110_1

Sunday, January 25, 2015

Past Layouts - #1

The Apartment Railway
Since there has not been much going on with the current layout (Holiday celebrations, work, NMRA Division newsletter and life in general) I thought it might be fun to visit
the past and show some of the layouts that have preceded the Northern Montana Line.

During the early 80’s, I got married, accepted a job transfer to Utah and began a new era in my life. We lived in apartments for to many years. I was anxious to build a layout. At the time I had a small stash of HO gauge equipment that I had collected while a member of the Great Falls Model Railroad club in Montana during my high school years. We finally moved into an apartment with a spare bedroom with enough space for a layout. The only problem is the bedroom was not big enough for an HO layout. The solution was to try and build something I had never attempted before. N SCALE! Now this was a big change for me. Early N scale was something that needed a lot of work, but I was determined that I WAS going to have a layout. So a small 2’x4’ portable layout was started to hone my basic model railroading skills. This was a simple folded loop with a town on each side. Not much to operate, but I was finally building something! Below are some of the only photos I took of the layout. I wish I had taken more. All this was pre- Kadee, DCC and the highly detailed models you can get today!

RJLuther_8

RJLuther_4

RJLuther_9

RJLuther_5

RJLuther_3

RJLuther_7

RJLuther_1
